| 1. |
Use control Panel to add East Asian Languages to Windows XP |
| 1.1 |
Click on "Start" on the task bar to see a list of commands |
| |
|
| 1.2 |
Click on "Control Panel" and Control Panel appears |
| |
|
| 1.3 |
In the control Panel popup window, click on "Date, Time, Language, and Regional Options" |
| |
|
| 1.4 |
In the "Date, Time, Language, and Regional Options" window, click on "Regional and Language Options" |
| |
|
| 1.5 |
In the "Regional and Language Options" popup window, click on "Languages" tab |
| |
|
| 1.6 |
On this tab, check the "install files for East Asian language" box |
| |
|
| 1.7 |
A dialog box of "Install Supplemental Language Support" window pops up. Click on button "OK" |
| |
|
| 1.8 |
In the "Reginal and Language Options" window, click on button "Apply" |
| |
|
| 1.9 |
A popup window appears to remind the user to insert Windows XP CD |
| |
|
| 1.10 |
Insert the Windows XP CD. The progress of copying is being shown in "Regional and Language Options" dialog box |
| |
|
| 1.11 |
A dialog box appears asking the user to restart the computer. Click on "Yes" to reboot the system |
| |
|
2. |
Configure Text services and input languages |
| 2.1 |
After system restarted, repeat the steps 1.1 to 1.5 above to get to "Languages" tab of "Regional and Language Options" |
| 2.2 |
click on button "Details" |
| |
|
| 2.3 |
In the "Text Services and Input Languages" window, click on button "Add" |
| |
|
| 2.4 |
In the "Add Input Language" window, select "Chinese (Taiwan)" in the upper box and
select "Microsoft New Phonetic IME 2002a" in the lower box |
| |

|
| 2.5 |
Click on "OK" |
| |
|
| 2.6 |
Note that "Chinese (Taiwan)" is added in Text Services and Input Languages window |
| |
|
| 2.7 |
Click on "Advanced" tab in Text Services and Input Language window |
| |
|
| 2.8 |
Check the box for "Extend support of advanced text services to all programs" and
uncheck the box for "Turn off advanced text services" |
| |
|
| 2.9 |
Click on button "Apply", a dialog box pops up asking the user to restart the computer |
| |
|
| 2.10 |
Click on "yes" |
| |
|
| 3. |
Specify Pinyin as the Input Method |
| 3.1 |
After system restarted, repeat the steps 1.1 to 1.5 above to get to "Languages" tab of "Regional and Language Options" |
| 3.2 |
click on button "Details" |
| |
|
| 3.3 |
In the "Text Services and Input Languages" window, highlight "Microsoft New Phonetic IME 2002a" |
| |
|
| 3.4 |
Click on button "Properties ..." |
| |
|
| 3.5 |
In the "Microsoft New Phonetic Input Method 2002a Property" dialog box, check "Legacy IME" oval |
| |
|
| 3.6 |

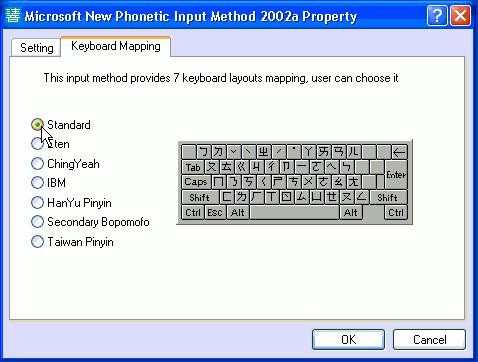

In the "Microsoft New Phonetic Input Method 2002a Property" dialog box, click on "Keyboard Mapping" tab |
| |
|
| 3.7 |
In this tab, check "Standard" oval |
| |
|
| 3.8 |

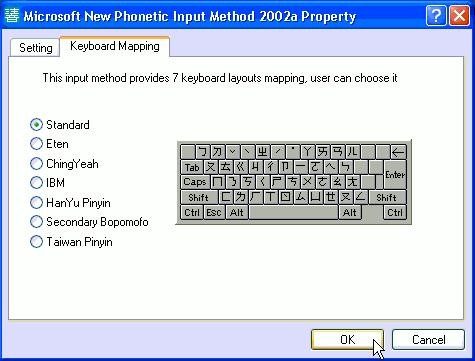

Click on "OK" in the "Microsoft New Phonetic Input Method 2002a Property" dialog box |
| |
|
| 3.9 |
Click on "OK" in the "Text Services and Input Language" dialog box |
| |
|
| 3.10 |
Click on "OK" in the "Regional and Language Options" window |
| |
|
4. |
Use IME for character input |
| 4.1 |
Start a WORD processor (e.g. Microsoft WORD or Notepad) |
| 4.2 |
On the task bar, click on "EN" |
| |
|
| 4.3 |
On the popup, click on "Chinese (Taiwan)" |
| |
|
| 4.4 |

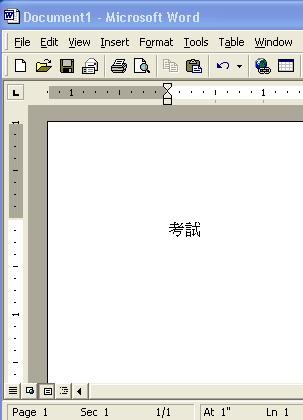

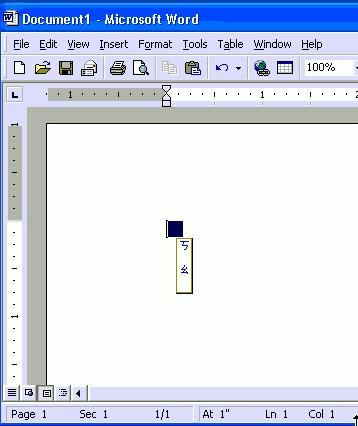

To enter "考試" in the text editor, key in letters "d l" followed by digit "3" for the 3rd tone |
| |
|
| 4.5 |

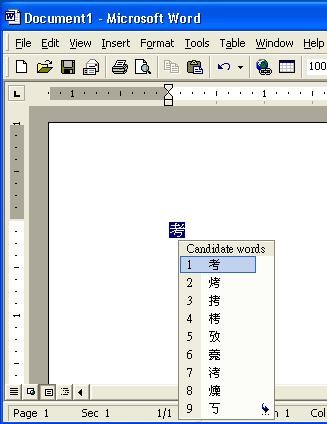

A list of "考" is displayed |
| |
|
| 4.6 |
Use one of the three methods below to select the character that you want: |
|
| 4.6.1 |
use the up/down arrow key to highlight the character of your choice, depress space bar to select |
| 4.6.2 |
type the digit in front of the character that you want |
| 4.6.3 |
click on the character that you want |
| |
|
| 4.7 |

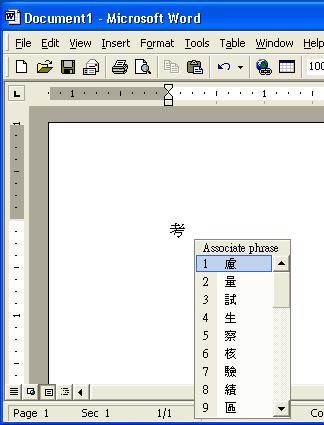

Then, a list of character is displayed for making phrases that starts with "考" |
| |
|
| 4.8 |
Use one of the two methods below to select the character that you want |
|
| 4.8.1 |
use the up/down arrow to move the highlight to the character of your choice, depress space bar to select |
| 4.8.2 |
hold down the shift key and type the digit in front of the character that you want |
| 4.8.3 |
click on the character that you want |
| |
|
|
| NOTES |
| 5.1 |
Holding down <CTRL> key and depress space bar will toggle between EN and CH
Likewise, holding down <ALT> and depress <SHIFT> key can toggle between EN and CH also
|
| 5.2 |
To enter symbols (e.g. 標點符號) |
|
| 5.2.1 |
Right Click the "CH" on the task bar |
| |
|
| 5.2.2 |
select "Restore the Language bar" |
| |
|
| 5.2.3 |
On the language bar, click on "tools"; select "symbols"; keyboard layout of symbols are displayed; click the symbol you want |
| |
|
| 5.3 |
To display a soft keyboard on the screen, go to the language bar; click on "tools"; select "Soft keyboard".
|
| 5.4 |
Use digit "5" for the light tone
|
